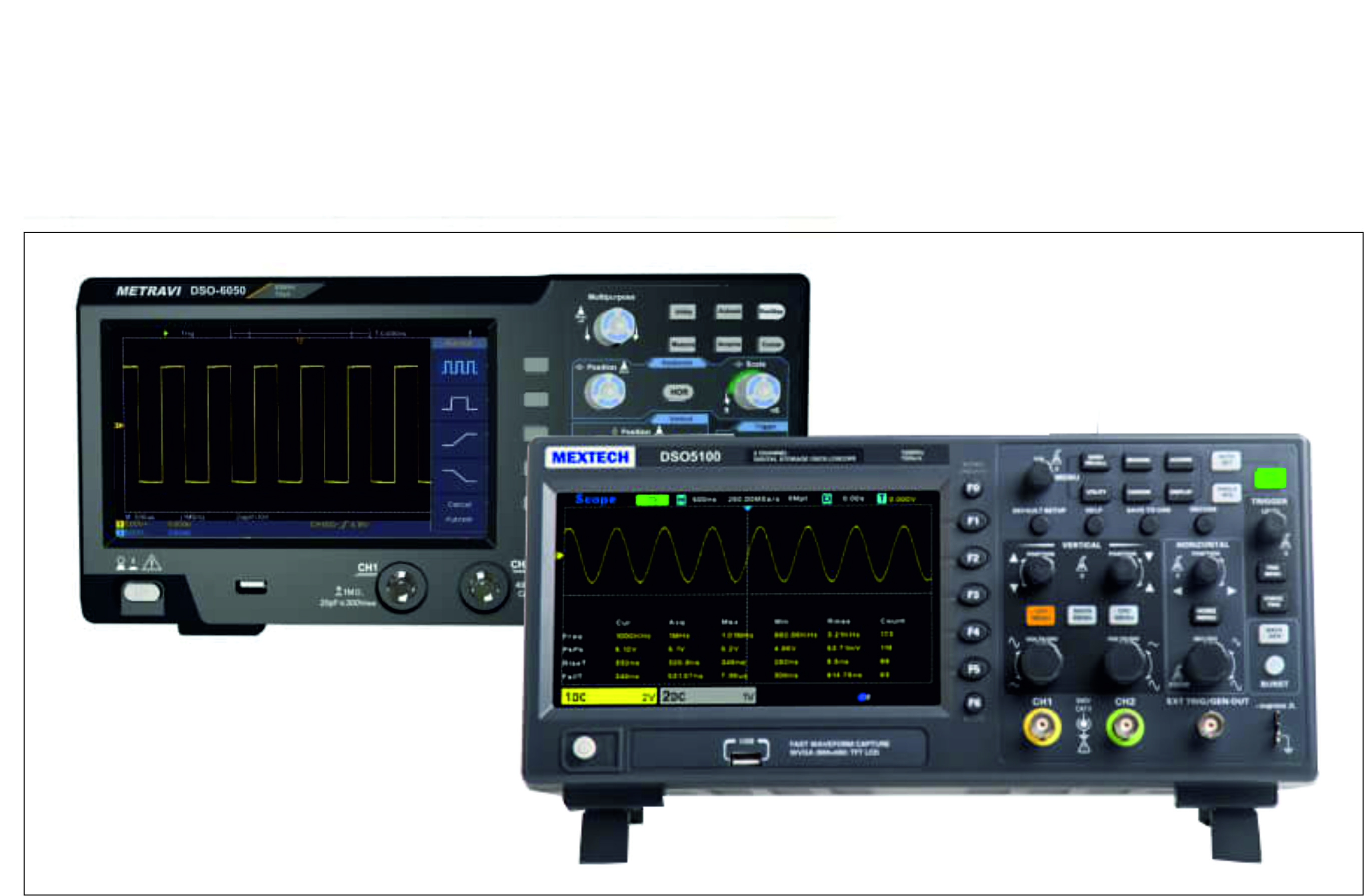

Digital Signal Oscilloscope
- This Digital Storage Oscilloscope comes with 50MHz bandwidth and two channels. With a high sampling rate of 1G/s, it is a high-accuracy, reliable instrument for your applications.
Mixed Signal Oscilloscope
- The Mixed Signal Oscilloscope is a cutting-edge portable oscilloscope and logic analyzer combo featuring 16 logic channels and 2 oscilloscope channels

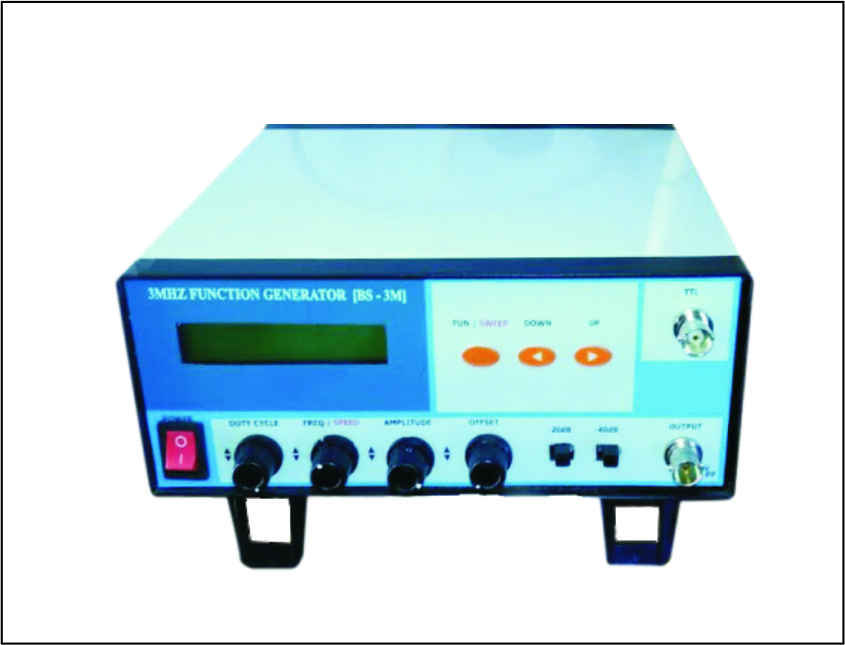

Function Generator
- Sine, Square, Triangle, Pulse, TTL, DC, Sweep output
- LCD display for 16 character by 2 line shows frequency and output wave form
- Variable DC offset with on/off control

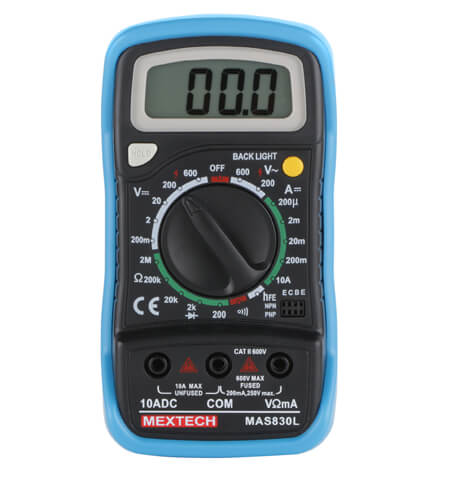

Multimeter
- Display: 3 ½ digit display with 1999 counts
- Over Range Indication: “1”
- Operating Temperature & Humidity: 0⁰C to 40⁰C < 75% RH
Variable Single Power Supply (0-30V / 2A)
- Input AC supply (220 - 230 V) AC, 50/60 Hz
- (0-30) V /2 A DC output, continuously variable coarse and fine controls
- 100 mA to 2 A DC Current , continuously variable current limiting facility
Dual Variable Power Supply (0-30V / 2A)
- Input AC supply (220 - 230 V) AC, 50/60 Hz
- (0-30) V /2 A Dual DC output, continuously variable coarse and fine controls
- 100 mA to 2 A Dual DC Current , continuously variable current limiting facility
Digital IC Trainer (16 Input and Output)
- 16 TTL Logic Level Inputs with LED indication for logic low and logic high
- 16 LED for output indication.
- The pulse generator to vary pulse width of rising edge and falling edge of the clock signal.
Analog and Digital IC Trainer (16 Input and Output)
- 16 TTL Logic Level Inputs with LED indication for logic low and logic high
- 16 LED for output indication
- Two No’s of Breadboard provided.
