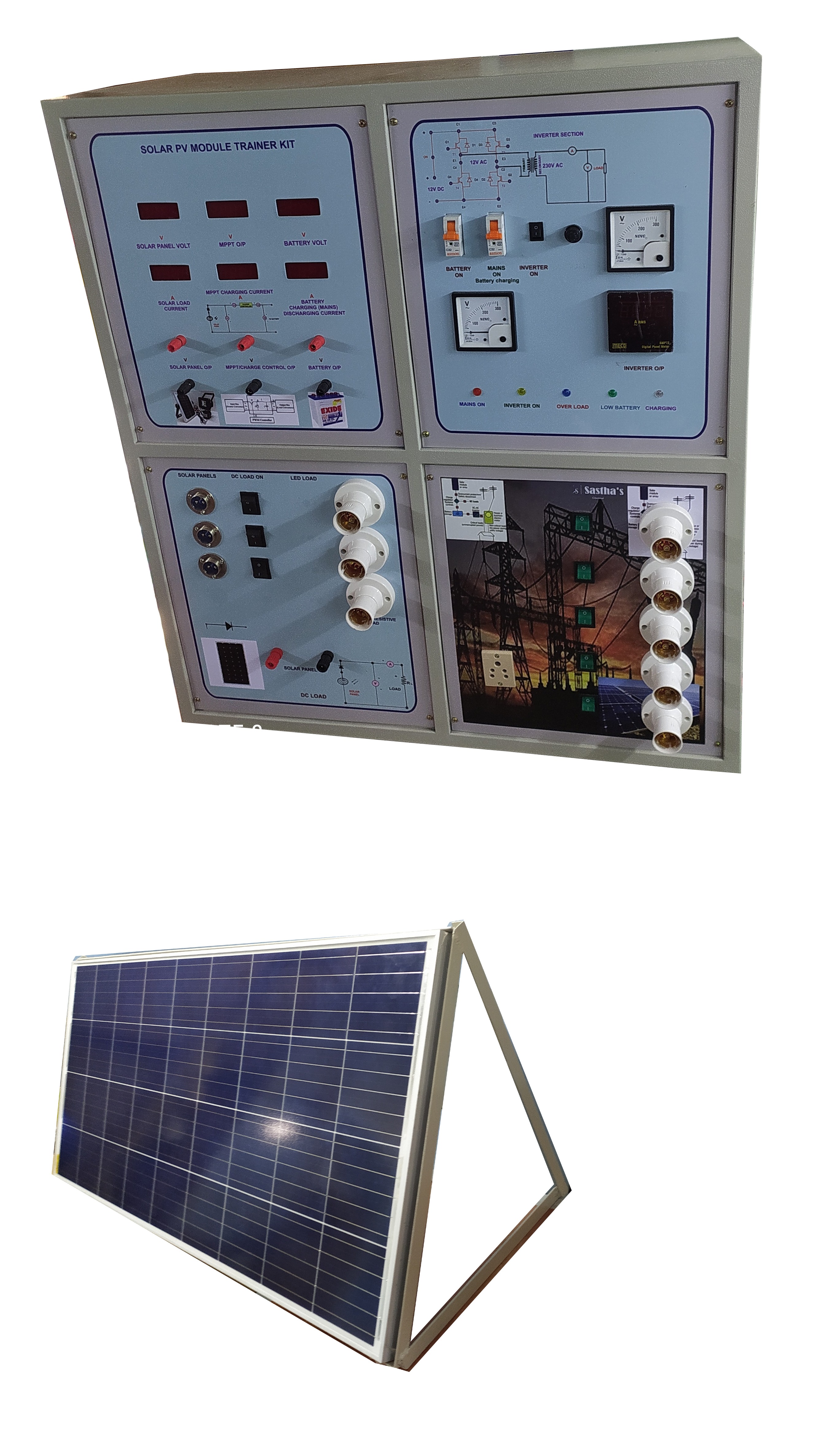

Solar Panel Trainer
This module consists of Inverter setup with panel meters, Solar panel with stand, Tilting mechanical light setup, Inclination meter etc., to study the solar panel module.
Wind - Solar Hybrid Study Trainer
This hybrid wind/solar system consist of 100Watts wind turbine with blower setup, Hybrid DC-DC converter and Battery with inverter.

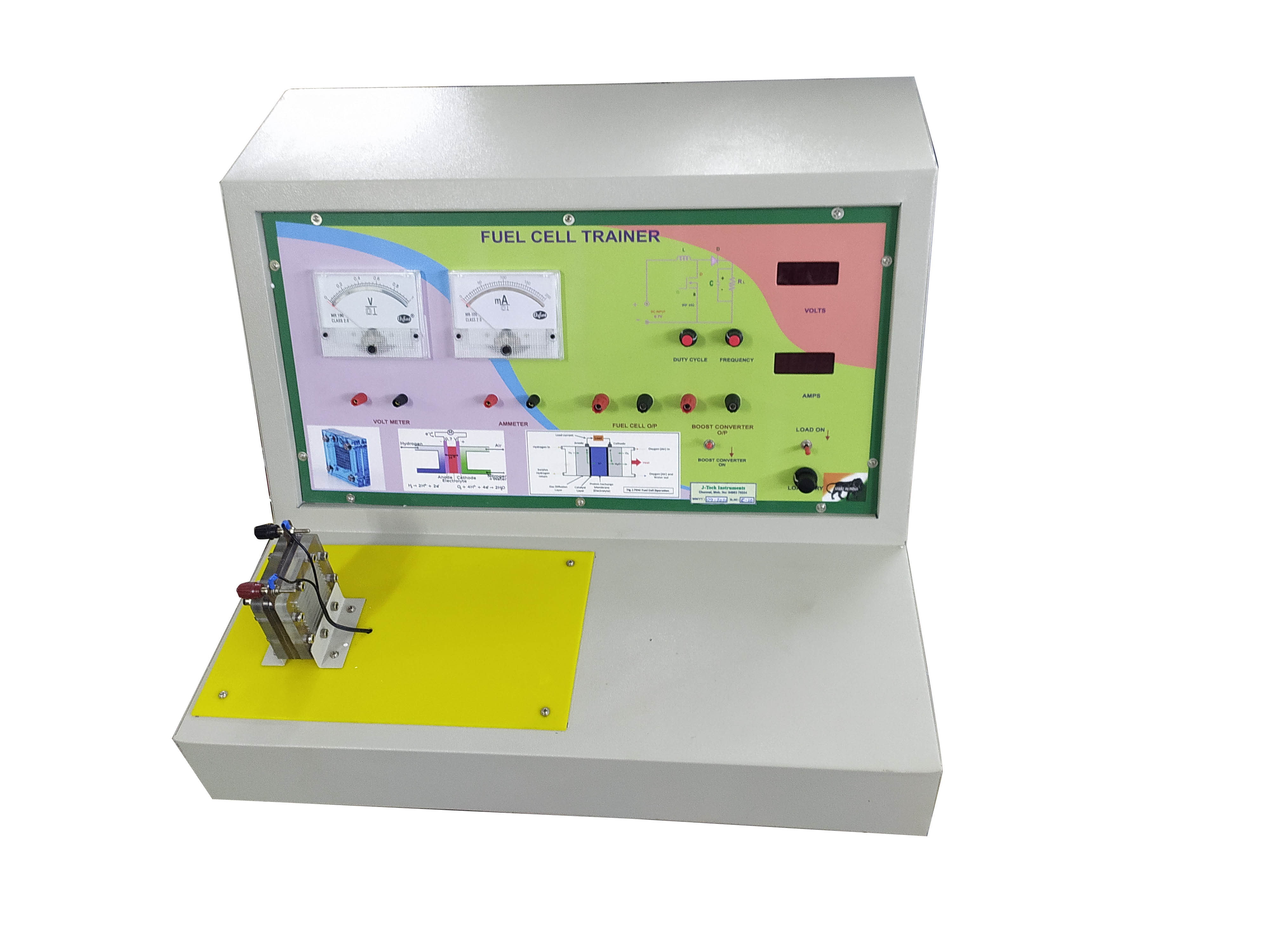

Fuel Cell Module Trainer
This module consists of Fuel cell, 50W DC-DC Boost Converter, Rheostat Load, etc., to study the Fuel cell.

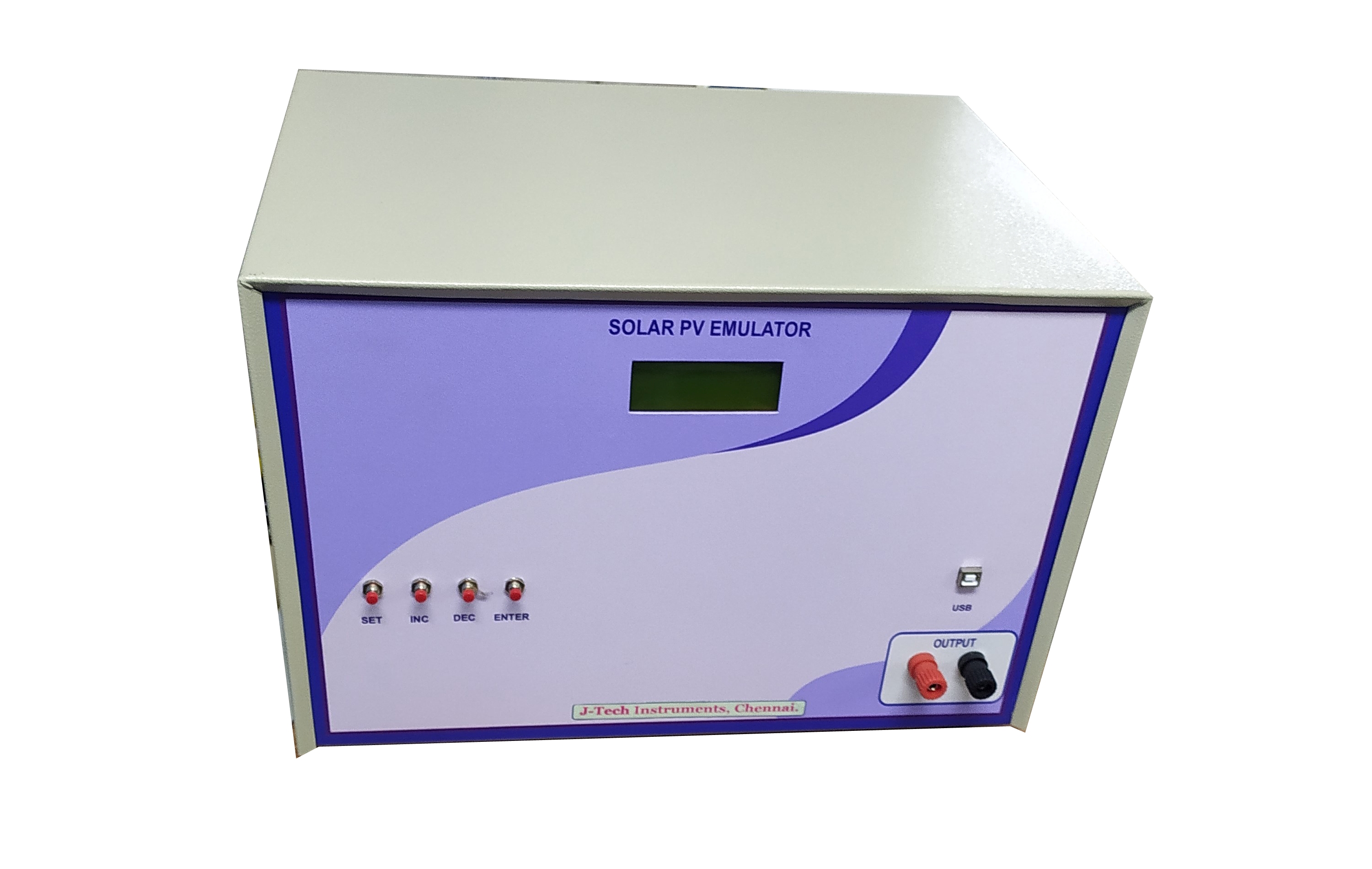

Real time PV Emulator
- 50 V DC / 500 watts emulator
- Voltage, Current, power indicators
- LCD Display with Switches
- Data Logging, Trend plot, Report generation and printing
- LabView based programming software

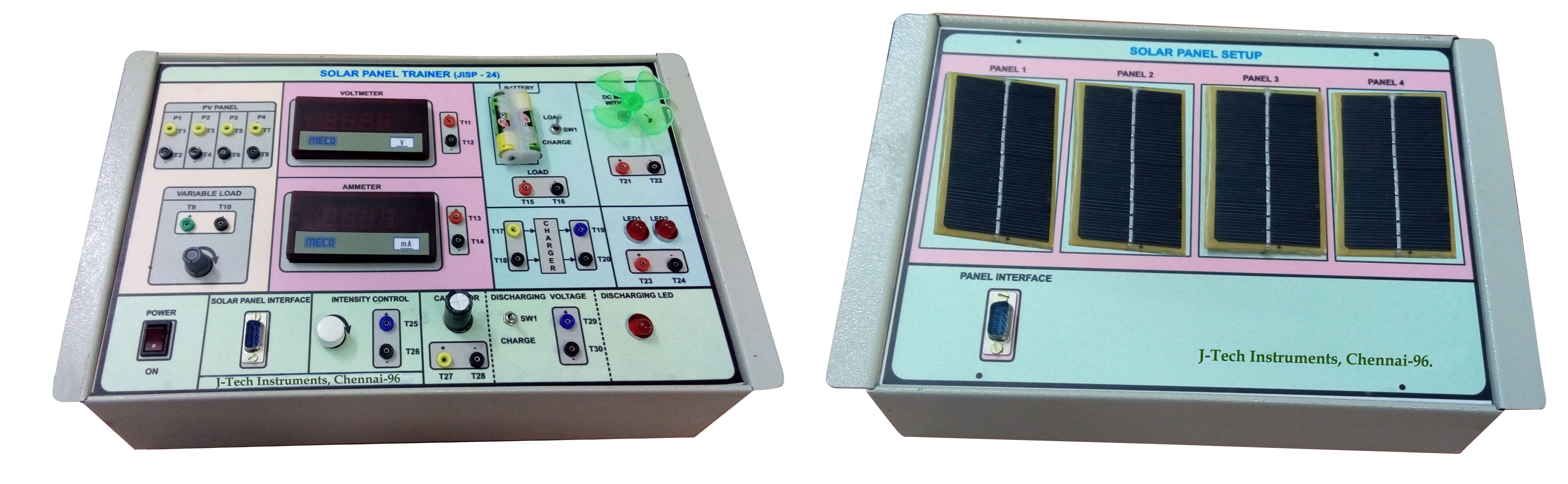

Solar Panel Trainer
- 4 No’s of small solar panel pasted on individual panel
- Table top position movable AC lamp
- Intensity control circuit with variable provision
- Digital DC panel voltmeter and ammeter to measure the panel voltage
