Displacement Measurement Using LVRT (JILV-29A)
- Linear Variable Resistive Sensor mounted on the panel
- Resistance measuring provision
- Regulated power supply
- Output voltage with test points
- Digital LED green display
Displacement Measurement Using LVDT (JILV-07)
- Spring leaded type Linear Variable Differential Transformer
- LVDT calibration jig with screw gauge
- Signal conditioner for LVDT sensor output
Speed Sensor Trainer Kit
- 12V DC motor with optical disk mounted on a plate
- Optical sensor and proximity sensor to sense the motor speed
- F/V converters to convert the pulses to voltage
Angular Displacement Measurement Using Capacitive and Resistive Transducer (JICR-25)
- Capacitive and Resistive sensor to sense the variable area
- Signal conditioner for capacitive and resistive sensors output
- Resistance and capacitance measuring provisions
Smoke Sensor Trainer
- Smoke sensor to sense the smoke of the area
- Signal conditioner for smoke the sensor output voltage
- Signal conditioning output connected with ALARM circuit
- Regulated power supply
Bourdon Tube Trainer
- LVDT sensor to sense the bourdon tube displacement
- Bourdon tube pressure gauge fixed on the setup
- Signal conditioner for LVDT sensor output
- Pressure tank fixed on MS base plate
Bellows Measurement Trainer
- LVDT sensor to sense the Bellows expansion
- Bellows fixed on the setup
- Signal conditioner for LVDT sensor output
- Pressure tank to store the pressure
- Foot pump to increase the pressure
Various Transducer Trainer (Strain, Load, Torque, Pressure)
- Strain gauge sensor with cantilever beam
- Load cell sensor
- Torque sensor mounted in L angle
- L angle and 1m length fulcrum arm
- Pressure sensor to sense the tank pressure
Various Transducer Trainer (Sound, Temperature, Level, Hall Effect, Optical)
- Sound sensor
- Thermocouple as a temperature sensor
- Hall effect sensor to sense magnetic flux
- LDR, photo diode as an optical sensor
- SS plate as capacitance sensor
Rosette Strain Measurement Trainer (JIST-02A)
- Rosette Strain gauge sensor with cantilever beam to measure the beam strain
- Slotted weights with hook to apply the load
- Signal conditioner for rosette strain gauge sensor output
Displacement Measurement Using Capacitive Transducer (Angular)
- Angular type capacitive pickup Sensor to sense the variable area
- Signal conditioner for capacitive sensor output
- Pro-circle with needle arrangement
- Regulated power supply
Displacement Measurement Using Inductive Transducer (JIIP-37)
- Copper inductor core with insulation
- Ferrite rod / metal rod fixed on mechanical movable setup
- Zero potmeter and scale arrangement
- Signal conditioner for inductive sensor output

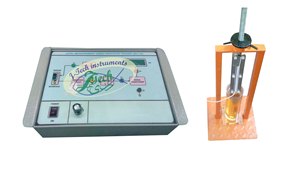

Displacement Measurement Using Capacitive Sensor (Liquid Medium) (JILC-22)
- Di-electric type capacitance sensor
- Mechanical movable setup with screw rod mechanism
- Transparent process tank with drain valve
- Graduated scale fixed on tank
Pressure Measurement Trainer (JIPR-05)
- Pressure sensor to sense the tank pressure
- Foot pump to create pressure
- MS pressure tank with hand valve arrangement
- Bourdon type MS pressure gauge to monitor the tank pressure
Angular Displacement Measurement Using Resistive Transducer
- Resistive sensor to sense the variable area with Pro-circle
- Signal conditioner for resistive sensors output
- Resistance measuring provision, Needle arrangements
- Regulated power supply
Shaft Angle Encoder Study Trainer
- Shaft angle encoder sensor with pulse output
- DC motor fixed on plate
- Variable voltage source
- Digital display to display the encoder output
Student type Potentiometer (JILV-28)
- Linear Variable Resistive Sensor mounted on the panel
- Scale sticker
- Regulated power supply
- Output voltage measuring provision
Displacement Measurement using Strain Gauge (JIDS-35)
- Strain gauge sensor with cantilever beam to measure the displacement of strain gauge
- Signal conditioner for strain gauge sensor output
- Digital green display to display the strain displacement
Rotary displacement using Magnetic Pickup Trainer
- Magnetic displacement sensor to sense the displacement
- Rotating knob with pro circle
- Signal conditioner for magnetic displacement sensor output
- Digital display to indicate the sensor displacement
Loading Effect on Potentiometer (JILP-36)
- Rotary Variable Resistive Sensor and Angular displacement linear sensor mounted on the panel
- Pro circle sticker with sensor output measuring points
- Loading circuit
- Regulated power supply
Load Measurement Trainer (JILD-04)
- Load cell sensor
- Pan provision for placing the standard weights
- Signal conditioner for load cell output
- Standard Weights
- Offset, span variable provision
- Digital display to display the applied
Strain Measurement Trainer (JIST-02)
- Strain gauge sensor with cantilever beam to measure the beam strain
- Slotted weights with hook to apply the load
- Standard Weights
- Signal conditioner for strain gauge sensor output
Torque Measurement Trainer (JITO-06)
- Strain gauge based reaction type torque sensor mounted in L angle
- MS L angle and 1m length fulcrum arm
- Slotted weight with hooks
- Digital LED display to indicate the torque
Pressure Measurement using Piezo Resistive Transducer
- Piezo resistive pressure sensor to sense the tank pressure
- MS pressure tank with hand valve arrangement
- Foot pump to create Pressure
- Bourdon type pressure gauge to monitor the tank pressure
Pressure Measurement Using Capacitive Transducer
- Capacitive type pressure sensor to sense the tank pressure
- Pressure tank to store the air pressure
- Foot pump to create Pressure
- Bourdon type pressure gauge to monitor the tank pressure
Vacuum Pressure Measurement Trainer (JIVP-18)
- Vacuum pressure sensor to sense the tank vacuum pressure
- Metal Pressure tank fixed on base plate
- Electric operated vacuum pump to create the vacuum
Various Transducer Trainer (Strain, Load, Torque)
- Strain gauge sensor with cantilever beam to measure the beam strain
- Load cell sensor
- Pan provision for placing the standard weights
- Reaction type torque sensor mounted in L angle
Various Transducer Trainer Kit (LVDT, Strain, Summing Amplifier, Reflective Opto Transducer) (JITT-29)
- Spring leaded type Linear Variable Differential Transformer
- LVDT calibration jig with screw gauge
- Strain gauge sensor with cantilever beam to measure the beam strain
- Signal conditioner for sensor output
- Summing amplifier circuit
Vibration Measurement Using Piezo Electric Transducer (JIPE – 12)
- Piezo Electric sensor fixed on exciter to sense the vibration
- Signal conditioner for above sensor output
- Digital display to display the acceleration and velocity
- Regulated power supply
Speed Measurement Trainer Using Photoelectric and Tachometer
- 12V DC motor fixed on the metal plate
- Optical (photo electric) type sensor to sense the speed of the motor
- MOSFET based power driver to drive the motor supply
- DC voltage source to vary the motor speed
Digital pH Meter with calibration
- 16 x 2 alpha numeric, LCD display
- 0 to 14pH, 0 to + 1999.9 mV, Temp. 0 to 100°C
- Auto/ Manual Calibration
- pH Electrode, Electrode stand, Beaker 100ml – 3 No’s, dust cover, Manual
Digital Conductivity Meter with Calibration
- 16 x 2 alpha numeric, LCD display
- 1 µS to 100mS (6 decade ranges)
- Auto/ Manual Calibration
- Temperature Range: 0 to 100°C
- Conductivity cell, Stand, Beaker 100ml, dust cover & manual
Load Measurement Using Proving Ring Trainer (JILD-04A)
- Proving ring sensor
- A pan provision for placing the standard weights
- Dial gauge to measure the load
- The rings are supplied complete with dial gauge and works calibration chart
